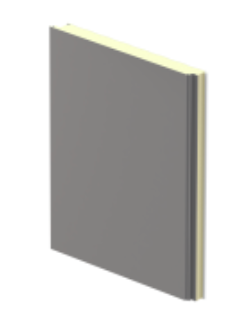

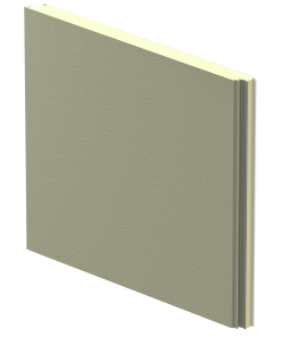

Flat Wall Panels combine a polyurethane insulating core with a range of surface styles to meet your building’s design and thermal performance needs. Available in Architectural, Tuff Cast™, CF Tuff Wall™, and Sante Fe™ options, these panels offer multiple widths, thicknesses, and lengths for flexible project planning.
Flat Wall Panels
PANEL TYPE

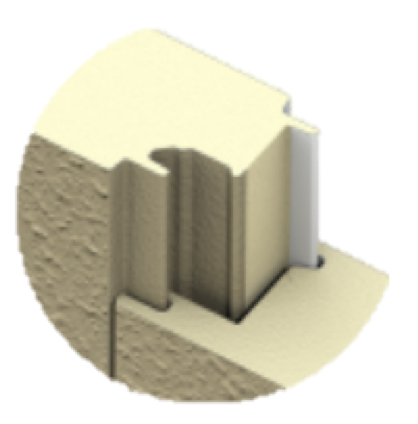

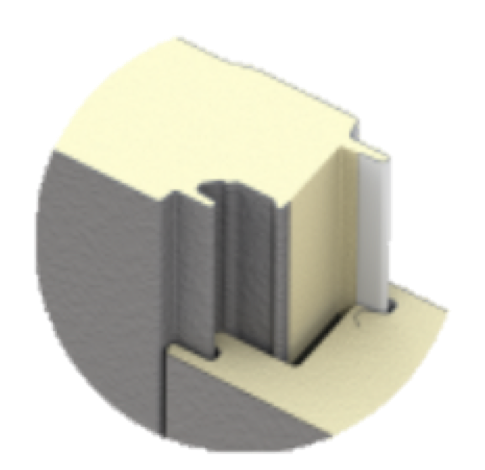

SIDE JOINT DETAILS




WIDTH
24″, 30′, 36′
36″, 42′
36″, 42″
24″, 30″, 36″, 42″
THICKNESS
2″, 2.5″, 3″, 4″
2″, 2.5″, 3″, 4″, 5″, 6″
2″, 2.5″, 3″, 4″, 5″, 6″
2″, 2.5″, 2.75″, 3″, 4″, 5″, 6″
LENGTH
8’0″ to 32’0″
8’0″ to 40’0″
8’0″ to 40’0″
8’0″ to 40’0″
75° CORE
Panel Width 36″
Panel Width 42″
Panel Width 42″
Panel Width 42″
MEAN TEMP|R-VALUE (h-ft²-°F/BTU)
3″ | 12-29
4″ | 18-62
5″ | 25-32
6″ | 31-85
2″ | 14-16
2.5″ | 19-38
2.75″ | 21-28
3″ | 23-58
4″ | 30-86
5″ | 37-88
6″ | 44-64
2″ | 14-16
2.5″ | 19-38
2.75″ | 21-28
3″ | 23-58
4″ | 30-86
2″ | 14-16
2.5″ | 19-38
2.75″ | 21-28
3″ | 23-58
4″ | 30-86
5″ | 37-88
6″ | 44-64
