| PANEL TYPE |

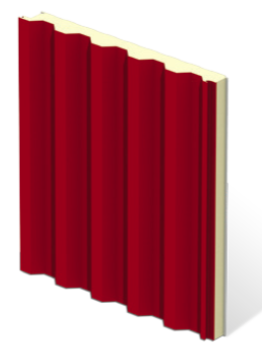

CF 7.2 INSUL-RIB ™ |
CF MESA |

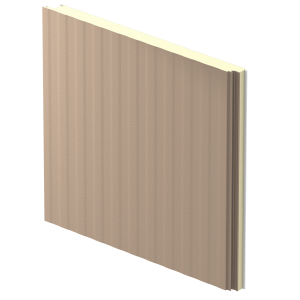

CF LIGHT MESA |
CF FLUTE |

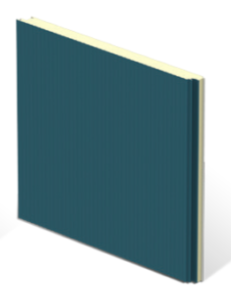

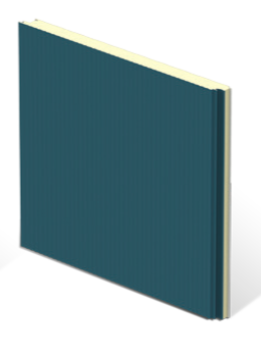

CF STRIATED |
|---|
| CROSS SECTION |
|
|
|
|
|

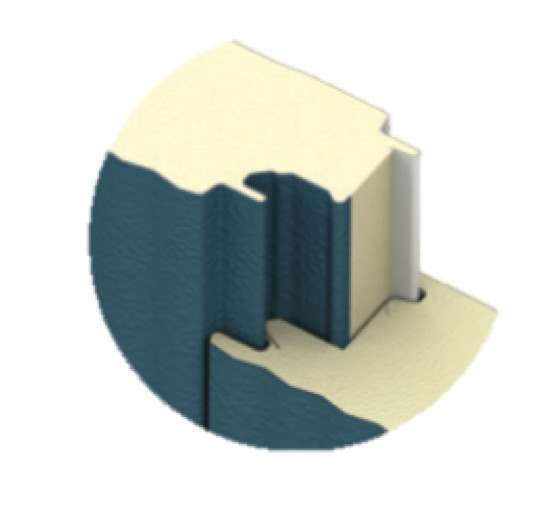

| SIDE JOINT DETAILS |  |  |  |  |  |
| WIDTH | 36″ | 30″, 36″, 42″ | 30″, 36″, 42″ | 42″ | 24″, 30″, 36″, 42″ |
| THICKNESS | 3″, 4″, 5″, 6″ | 2″, 2.5″, 2.75″, 3″, 4″, 5″, 6″ | 2″, 2.5″, 2.75″, 3″, 4″ | 2″, 2.5″, 2.75″, 3″, 4″, 5″, 6″ | 2″, 2.5″, 2.75″, 3″, 4″ |
| LENGTH | to 40’0″ | 8’0″ to 53’0″ | 8’0″ to 53’0″ | 8’0″ to 53’0″ | 24-36 width:8′-40′
42 width: 8′-32′ |
| 75° CORE | Panel Width 36″ | Panel Width 42″ | Panel Width 42″ | Panel Width 42″ | Panel Width 42″ |
| MEAN TEMP|R-VALUE (h-ft²-°F/BTU) | 3″ | 12-29
4″ | 18-62
5″ | 25-32
6″ | 31-85 | 2″ | 14-16
2.5″ | 19-38
2.75″ | 21-28
3″ | 23-58
4″ | 30-86
5″ | 37-88
6″ | 44-64 | 2″ | 14-16
2.5″ | 19-38
2.75″ | 21-28
3″ | 23-58
4″ | 30-86 | 2″ | 14-16
2.5″ | 19-38
2.75″ | 21-28
3″ | 23-58
4″ | 30-86
5″ | 37-88
6″ | 44-64 | 2″ | 14-16
2.5″ | 19-38
2.75″ | 21-28
3″ | 23-58
4″ | 30-86 |
