Specialized Panels

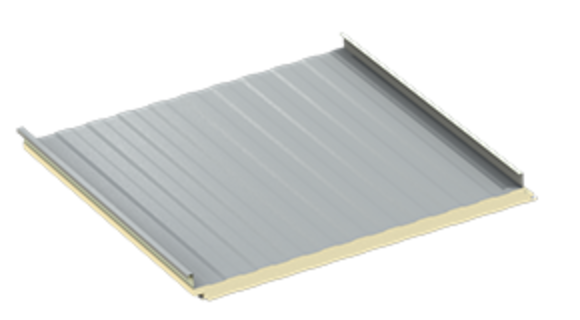

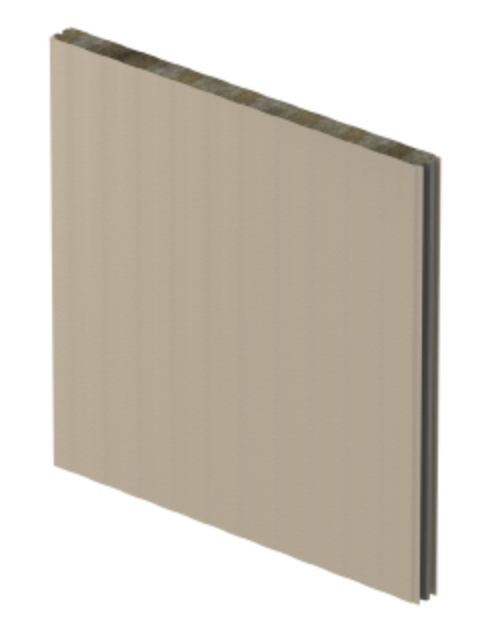

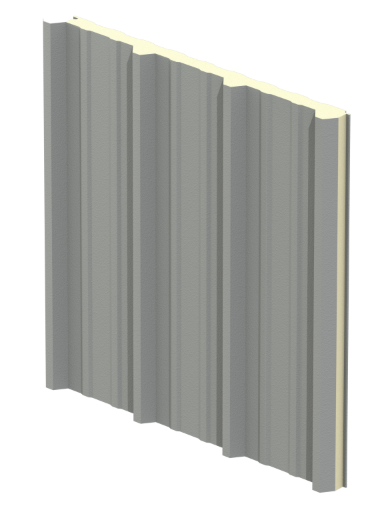

PANEL TYPE	THERMALSAFE™FIRE-RESISTANT	CFR INSULATED METAL ROOF	LS-36™ INSULATED METAL ROOF& WALL EXPOSED FASTENERS

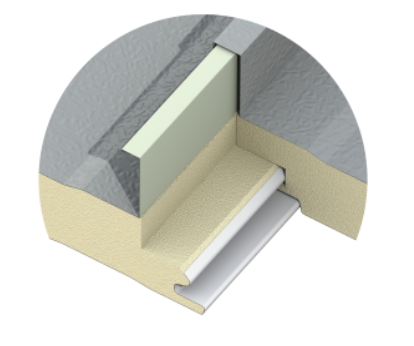

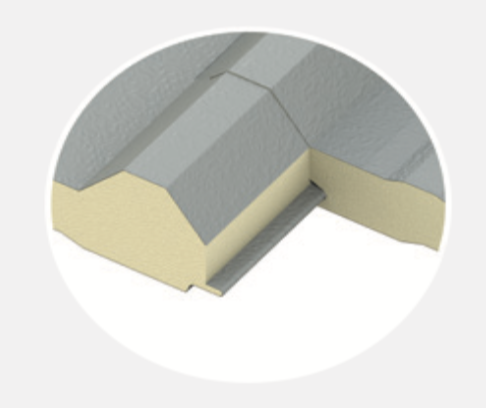

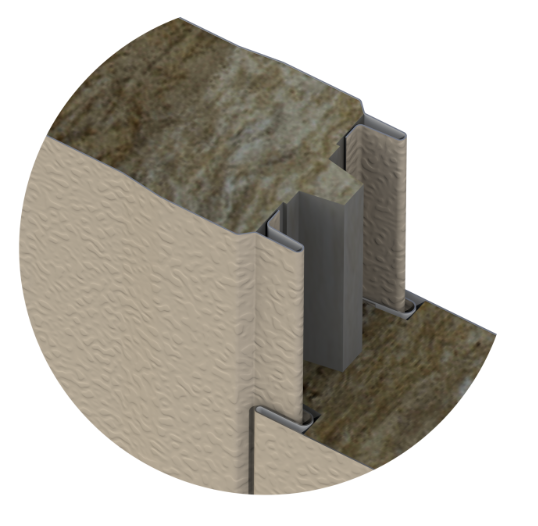

SIDE JOINT DETAILS
WIDTH	42″	30″, 36″, 42″	36″
THICKNESS	Nominal 3″**, 4″, 5″, 6″, 7″, 8″	2″, 2.5″, 3″, 4″, 5″, 6″	1.5″, 2″, 2.5″, 3″, 4″, 5″, 6″ Rib height not included in thickness
LENGTH	8′-0″ to 40′-0″ Variable by thickness Contact Metl-Span for exact maximum length for each thickness Roof U-Factor and R-Values below	9’6″ to 53’0″ Contact Metl-Span for custom length availability	8’0″ to 50’0″
R-VALUE 75° CORE	Panel Width 42″	Panel Width 42″	Panel Width 36″
MEAN TEMP\|R-VALUE (h-ft²-°F/BTU)	4″ \| 15.29 5″ \| 18.90 6″ \| 22.51 7″ \| 26.12 8″ \| 29.73	2″ \| 16.67 2.5″ \| 20.41 3″ \| 24.15 4″ \| 31.45 5″ \| 38.91 6″ \| 46.08	1.5″ \| 12.77 2″ \| 16.61 2.5″ \| 20.37 3″ \| 24.15 4″ \| 30.67 5″ \| 37.31 6″ \| 44.05
